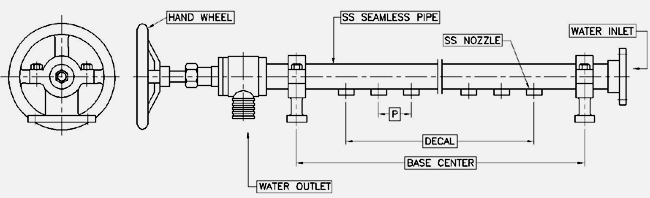

S.S self cleaning shower comes with a disc type jet nozzle
& a brush assembly. In order to achieve the desired quality
of paper it is necessary that the shower systems are in place.
To achieve optimum and effective spray of water, the spray
angle has been maintained at 60o . This ensures that the felt
is covered completely by the shower system.
It utilizes a hand wheel to rotate the brush assembly. The
brushes do not shut down the spraying operation. The shower
continues to spray during the flush out operation. The brush
sections are staggered at 120o intervals along the shower.
Large passages between the brush sections allow full flow
while the system operates. Brush interference with the nozzle
inlet does not adversely affect the performance when the flush
out valve is in the full operating position.
Shower piping is 316
Nozzle type, orifice size and spacing
are carefully matched to the shower’s application
