  Products :-

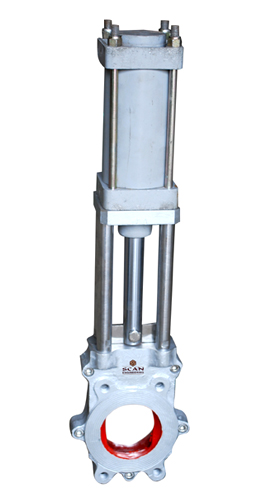

   SS Pulp Gate Valves

  Pneumatic Operated

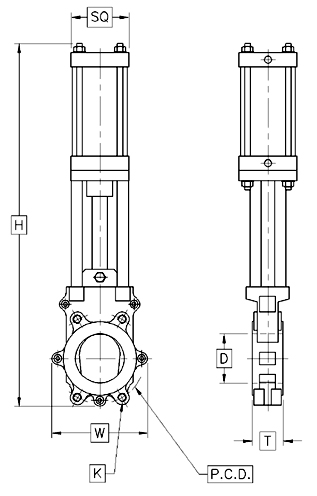

'Dø'

‘W’

‘H’

‘T’

‘K’

P.s.D.

Sq.

CYLINDER SIZE

40

122

415

42

1/2”

98.0

67 X 67

50d x 65st.

50

130

455

42

1/2”

115

67 X 67

50d x 75st.

75

155

565

50

1/2”

146

67 X 67

50d x 100st.

100

185

625

50

5/8”

178

93 X 93

75d x 125st.

125

210

765

50

5/8”

210

93 X 93

75d x 150st.

150

210

950

60

3/4”

235

93 X 93

75d x 175st.

200

270

1115

60

3/4”

292

115 X 115

100d x 225st.

250

345

1245

60

3/4”

355

146 X 146

125d x 275st.

300

420

1625

60

3/4”

406

146 X 146

125d x 325st.

Fitting holes & PSD as per 'E' Table Flange
